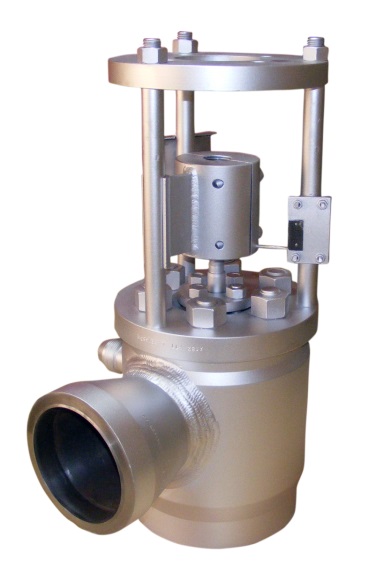

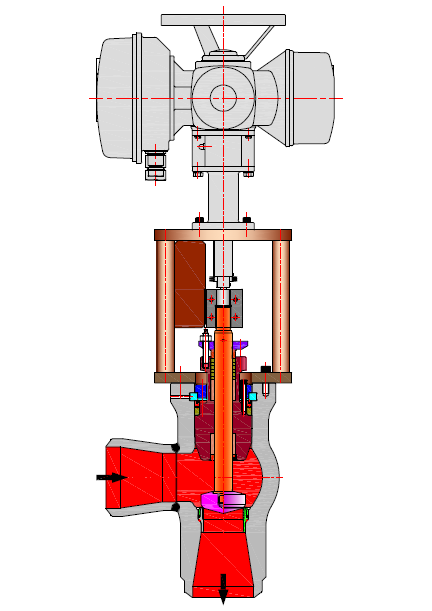

| Valve type | ES | ESV |
| Common design features “ Smooth ‘’ body contour thermal fatigue Easy access to internal parts reduces maintenance costs and system downtime |  |  |
| Application | Turbine bypass stop valve Process steam stop valve Water stop valve | Start up vent , No load vent |
| Body style | Angle Fully machined | Angle Fully machined |
| Body material | Forged CrMo-low alloy or carbon steel Optional 13% Cr-steel,F91 | Forged CrMo-low alloy or carbon steel Optional 13% Cr-steel,F91 |
| Pressure class, inlet Pressure class, outlet | ANSI # 600-2500,Option # 4500 ANSI# 600-2500, Option # 4500 | ANSI # 600-2500,Option # 4500 ANSI# 600-2500, Option # 4500 |
| Max capacity, Kv (Cv) | 7500 (8700) | 7500 (8700) |
| Leakage class | V | V |
| Plug design available | Contour On/Off Unbalanced Balanced tight | Contour On/Off Unbalanced Balanced tight |
| Special design features | High quality body design for total integrity of Pressure containing parts Integral hard surfaces seat assures tight shut –off Flow path in angle body means low pressure drop due to pressure recovery in the outlet cone | High quality body design for total integrity of Pressure containing parts Integral hard surfaces seat assures tight shut –off Flow path in angle body means low pressure drop due to pressure recovery in the outlet cone |
